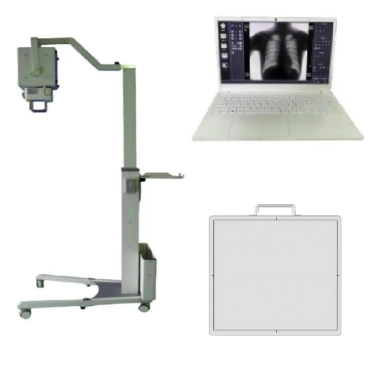

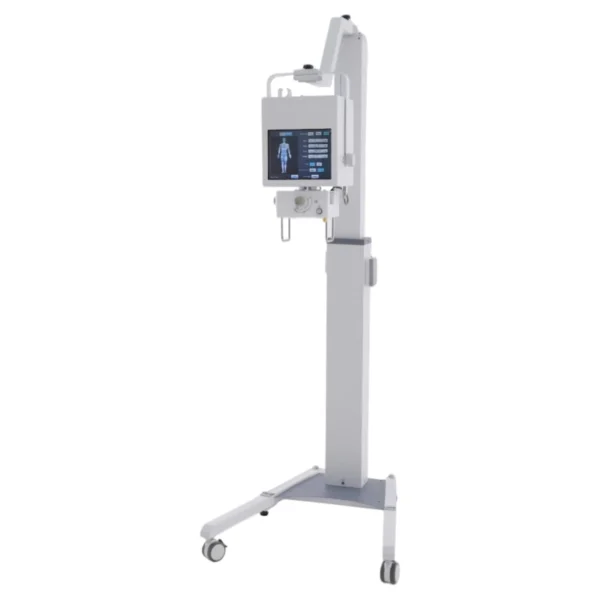

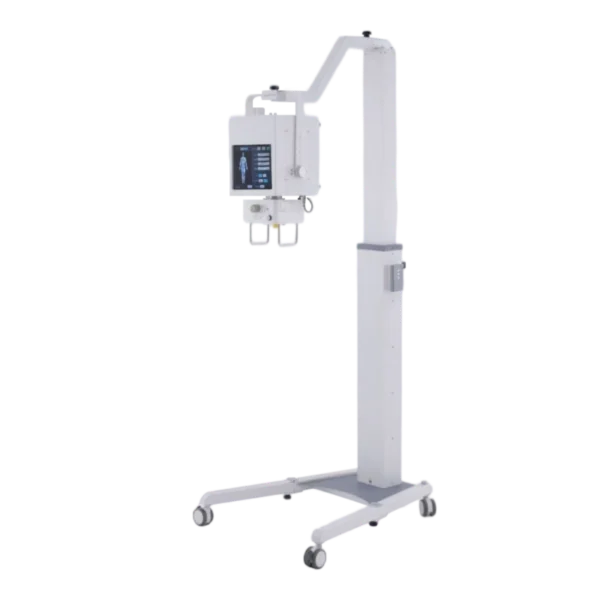

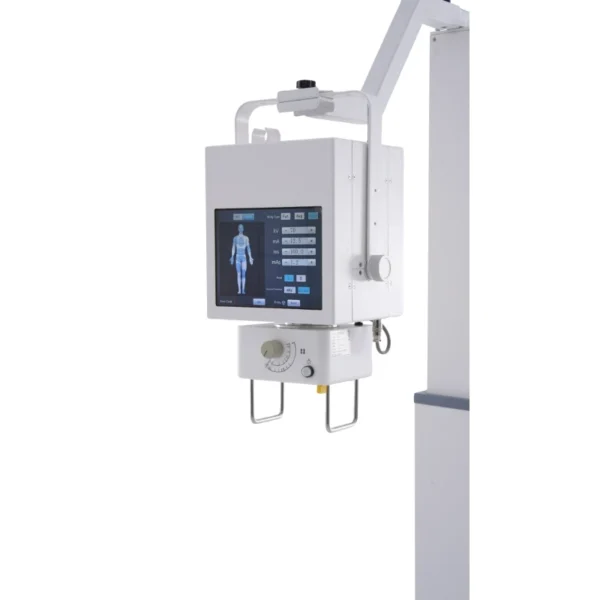

QMDR-50/53/56/80 Mobile Digital Radiography X-ray System

This DR Digital X-ray Imaging System is a high-performance, user-friendly medical device designed for the examination and diagnosis of human limbs. It is ideal for use in hospitals, clinics, physical examination centers, ambulances, and other medical facilities. Featuring a simple structure, compact size, and lightweight design, it does not require specific environmental conditions or a lead-shielded darkroom, making it highly versatile and easy to deploy in various settings.

Equipped with a flexible mobile stand, the system can easily adapt to different workstation requirements and can also be used for bedside imaging in hospital wards, offering enhanced convenience for medical staff and patients. The system provides three exposure control methods: remote control, hand switch, and touch screen, ensuring easy operation and versatility. Additionally, it includes fault self-protection and self-diagnosis features, as well as high-precision control of tube voltage and tube current, ensuring stable and reliable imaging quality.

Category:

Features

-It can be widely used in the examination and diagnosis of human limbs, and is suitable for medical institutions such as hospitals, clinics, physical examination centers, ambulances, etc;

-Simple structure, small size, light weight, no environmental restrictions, no need to build a lead shielded darkroom;

-Mobile rack is flexible and convenient, which can meet the requirements of different workstations, and can be used as a bedside shooting in a hospital ward;

-Three exposure control methods: remote control, hand switch, touch screen;

-Fault self-protection, self-diagnosis, high-precision control of tube voltage and tube current;

-It is a DR digital X-ray photography system.

Technical Specifications

General Parameter
Model: QMDR-50 QMDR-53 QMDR-56 QMDR-80
Output Power 5kW 5.3kW 5.6kW 8kW
Rated Voltage 220~240VAC 220~240VAC 220~240VAC 220VAC ,±10%, 50Hz
Inverter Frequency 100kHz±10% 100kHz±10% 100kHz±10% 100kHz±5%
kV accuracy ±10% ±10% ±10% ±4%
mA accuracy ±10% ±10% ±10% ≤±(5% ) (mA>25mA,ms>5);  ≤±(10% +1mA) (mA≤25mA);
Rotor Fixed anode Fixed anode Fixed anode Fixed anode
Exposure Parameter
kV Range 40kV-125kV,1kV step 40kV-125kV,1kV step 40kV-125kV,1kV step 40kV-125kV,1kV step
mA Range 10-100mA 10-100mA 10-100mA 10-140mA
ms Range 1-4000ms 1-4000ms 1-4000ms 2-2000ms
ms accuracy ≤±(5%+0.2ms) ≤±(5%+0.2ms) ≤±(5%+0.2ms) ≤±(5%+0.2ms)
mAs Range 0.1-200mAs 0.1-200mAs 0.1-200mAs 0.2-100mAs
mAs accuracy ≤±(5%+0.2mAs) ≤±(5%+0.2mAs) ≤±(5%+0.2mAs) ≤±(5%+0.2mAs)
Optional Parameter
tech.mode kV-mAs kV-mAs kV-mAs kV-mAs
kV-mA-ms kV-mA-ms kV-mA-ms kV-mA-ms
Communication interface RS-232 RS-232 RS-232 RS-232
Tube Parameter
Max power 5.3kW 5.3kW 5.6kW 8kW
Focal spot Small:0.6;Large:1.8 Small:0.6;Large:1.8 Small:0.6;Large:1.8 Small:0.6;Large:2
Exposure duty cycle 1:60 1:60 1:60 1:60
Maximum current of small filament 20mA 20mA 20mA 20mA
Maximum  current of big filament 100mA 100mA 100mA 140mA
Leakage radiation loading factor 125kv,0.24mA 125kv,0.24mA 125kv,0.24mA 125kv,0.24mA
X-ray tube target angle 15° 15° 15° 15°
 X-ray tube intrinsic filtration 0.6mmAl 0.6mmAl 0.6mmAl 0.6mmAl
Monoblock filtration 1.5mmAl 1.5mmAl 1.5mmAl 1.5mmAl
